Product-Crossflow Hollow Fiber MBR Module

You didn’t come this far to stop.

Memtik Crossflow PVDF MBR Module

-Designed for Upgrades

The Memtik HMBR series product was designed to quickly, and significantly, increase the filtration capacity of existing plants using flat-plate technology. It is compatible with several Toray® and Kubota® products. The Memtik HMBR modules can be installed in a single-side or double-side configuration. Equipment dimensions and operating parameters are like, and in some cases, the same as, older style plate cassettes/modules but with a packing density that is 31% to 190% higher. Simple changeouts can be done in hours having minimal impact on plant operations but having a big impact on capacity. The Memtik FMBR series product are developed together with China based membrane manufacturer with 20+ years manufacturing experience coupled with Memtik professional technical support engineer to provide high value product and solutions.

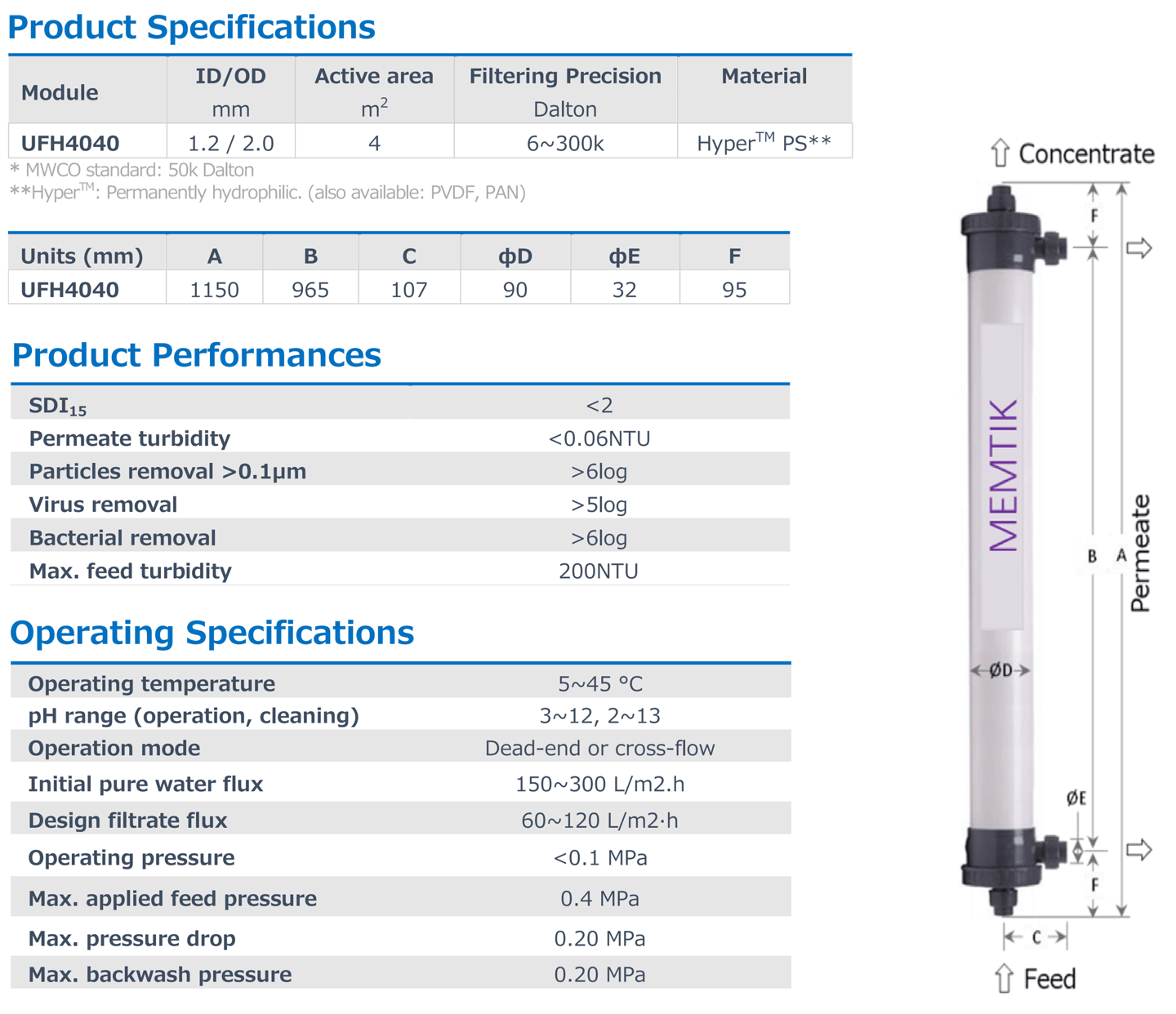

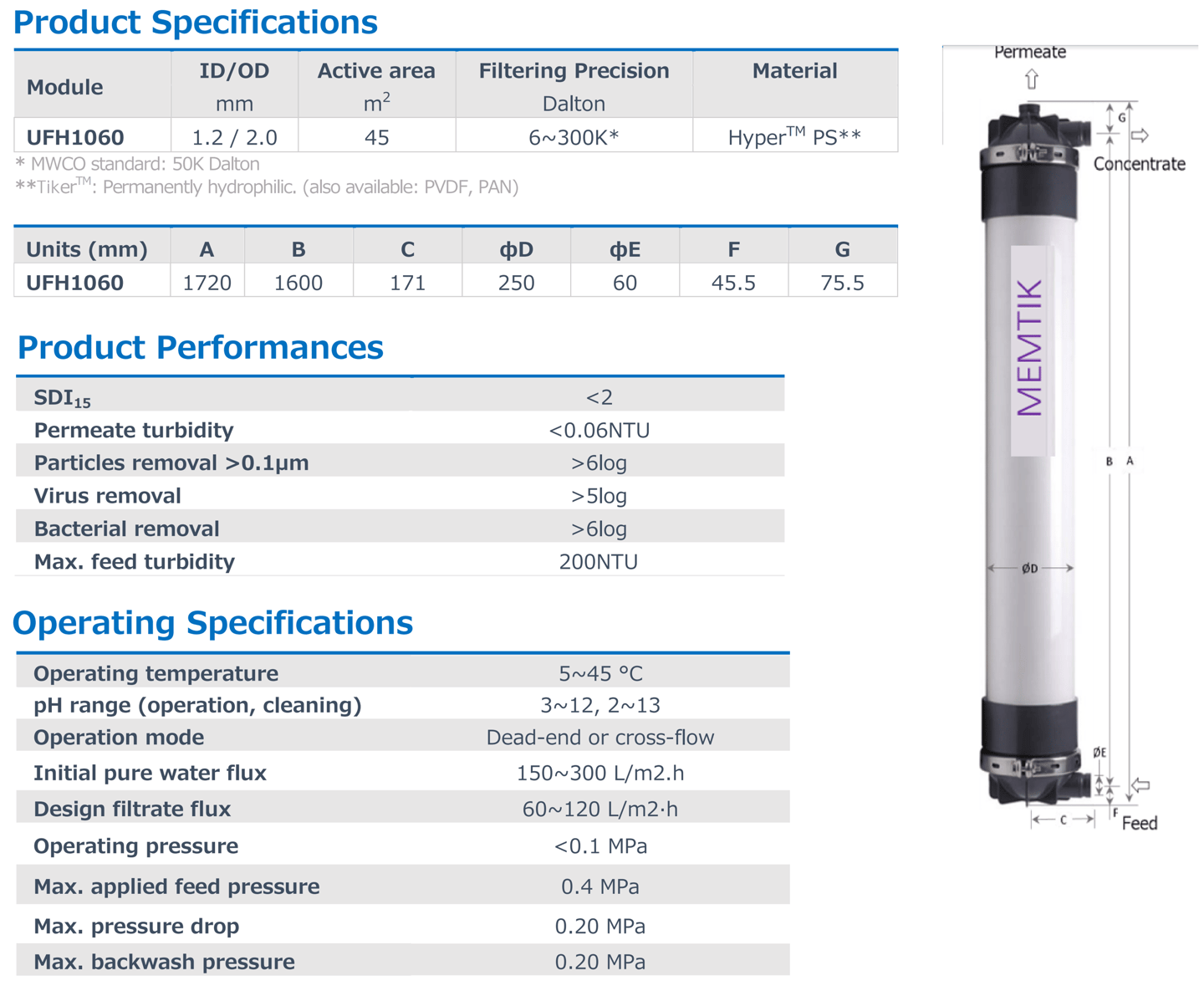

UPH 1060/4040 Module

The Inside-Out UFH-PS Series ultrafiltration (UF) membrane is optimized for purification, separation & concentration of feed liquids with relatively low turbidity.

The UFH PS Series, structured with PS (permanently hydrophilic polysulfone) has the advantage of dry storage. It is designed to deliver highest molecular weight cut-off precision, low fouling and excellent uniformity of water distribution.

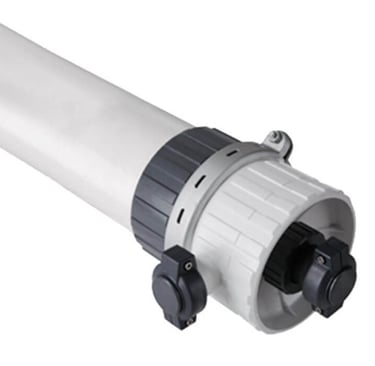

UFP 2860/2880 Module

The Outside-In UFP PVDF Series, is a Pressurized Ultrafiltration (UF) module built with robust PVDF fibre technology and optimized for handling capacities greater than 50 m3/hr, and with relatively high turbidity.

The UFP PVDF Series, structured with the proprietary PVDF (permanently hydrophilic) delivering excellent performance with high permeability, low fouling, high mechanical strength.UFP PVDF Series modules can be used for a wide variety of treatment applications such as industrial and municipal wastewaters, surface water, and seawater
