BRACKISH WATER REVERSE OSMOSIS

Memtik Water’s Brackish Water Reverse Osmosis (BWRO) desalination plants are designed to treat ground/surface or industrial water with <5,000 mg/L of dissolved solids (TDS) and <30 mg/L of suspended solids (TSS), to achieve potable water quality. The standard treatment process involves pre filtration (auto-backwashing multimedia filters and cartridge filters), anti-scalant dosing to prevent membrane scaling, RO desalination and a CIP system for membrane cleaning.

Additional pre-RO and post-RO treatment steps may be added as required to suit feed water conditions and/or treated water quality requirements. The BWRO plants are available as skid mounted or containerised systems.

Memtik-A Trusted Partner in SWRO Product

We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.

BWRO Selection Guide

Reverse Osmosis recovery rate is mainly influenced by the quality of the feed. The contaminants are usually inorganic salts and organics which 1) raise the Osmotic Pressure (π) and 2) foul the system’s membranes.Water can be classified according to the Total Dissolved Solids (TDS) that it contains to the following categories,

Water Classification TDS (mg/L)

Potable <500

Freshwater (not treated) <1,500

Brackish Water (BW) 1,500-5,000

Saline Water >5,000

Seawater (SW) >25,000

So the less TDS you have, the less applied pressure you need in order to push the water through the pores of the RO membranes. This is why BWRO can achieve up to 70-97% recovery (especially with new system configurations) and SWRO is limited to 35-45%. If you apply too much pressure on the membrane

1) you may create precipitation of super-saturated salts and

2) membranes have a burst pressure limit (85bar) that can’t be overcome.

The anions and cations that make up the TDS have the tendency to create mineral scaling on the surface of the membranes. This happens due to a phenomenon called Concentration Polarization which increases the concentration near the membrane surface up to ca. +20% that may lead to crystal formation and thus scaling. This causes,

• ↑ Differential Pressure (ΔP)

• ↓ Permeate Flow

• ↓ Permeate Quality

The usual suspects are sparingly soluble salts like CaCO3 (limestone), CaSO4 (Gypsum) and when we have surface waters, Barium, Strontium and Fluorides. Also we have to take into consideration low solubility compounds like the Silica concentration.

Organics create a layer on top of the membranes (biofilm) that has the same effects as scaling.

Some foulants can also cause physical damage to the membrane itself, thus decreasing it performance and life.

Scaling and biofouling are the reasons why before the feedwater reaches the membranes we apply a pretreatment which changes case-by-case but in general it’s made up by cartridge filtration, adsorption, filtering, pH adjustment and antiscalant chemicals.

Also we apply chemical cleanings (CIPs) that are performed as less as possible and are designed case-by-case.

In order to overcome the limitations of desalination, we’ve a couple of tricks up our sleeve that can be categorized

1. Improved Feed Pre-Treatment

2. Advanced Membrane Technology

3. New Flow Configurations

4. Brine Treatment Technologies

1) Improved Feed Pre-Treatment

With new membrane technologies, the feed can be rid of the problematic ions that cause scaling. A good example is the use of NF membranes for cutting of the bivalents (Ca2+, Mg2+, SO42-) that are sure to create problems for our membranes. Thus we can ensure better and more permeate for our system.

Another option is to use antiscalants. They are chemical additives that create a time delay between the bicarbonate and the formation of calcium magnesium allowing for the water to pass through the membrane before scaling occurs. Antiscalants are relatively cheap products and have no additional costs.

2) Advanced Membrane Technology

New membranes with improved,

• Active surface area

• Burst pressure limit

• Permeability

• Biofouling resistance

• Spiral wound diameter

can increase the system’s efficiency and recover water at a higher rate than their predecessors.

3) New System Configurations

The industry has come up with new system configurations that allow for,

• Concentrate Recirculation

• Concentrate Staging

• Permeate Staging

4) Brine Treatment Technologies

In the last decades there has been a lot of effort in taking as much water possible out of the RO concentrate (Brine) and many technologies have been developed leading the system to Minimum or Zero Liquid Discharge

Each of the latter optimizations can help optimizing the system and increase the water recovery rate. Our Lenntech engineers can provide you with the best solutions that will be appropriate for your case, increasing the efficiency and decreasing the costs. Call or email us and we’ll be happy to help you with your case.

Memtik-A Trusted Partner in SWRO Product

We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.

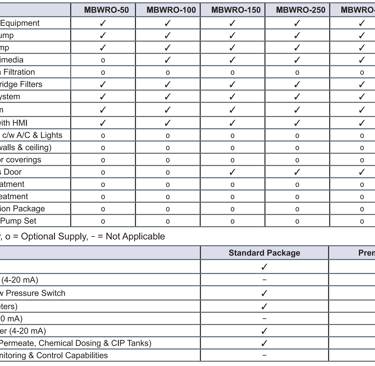

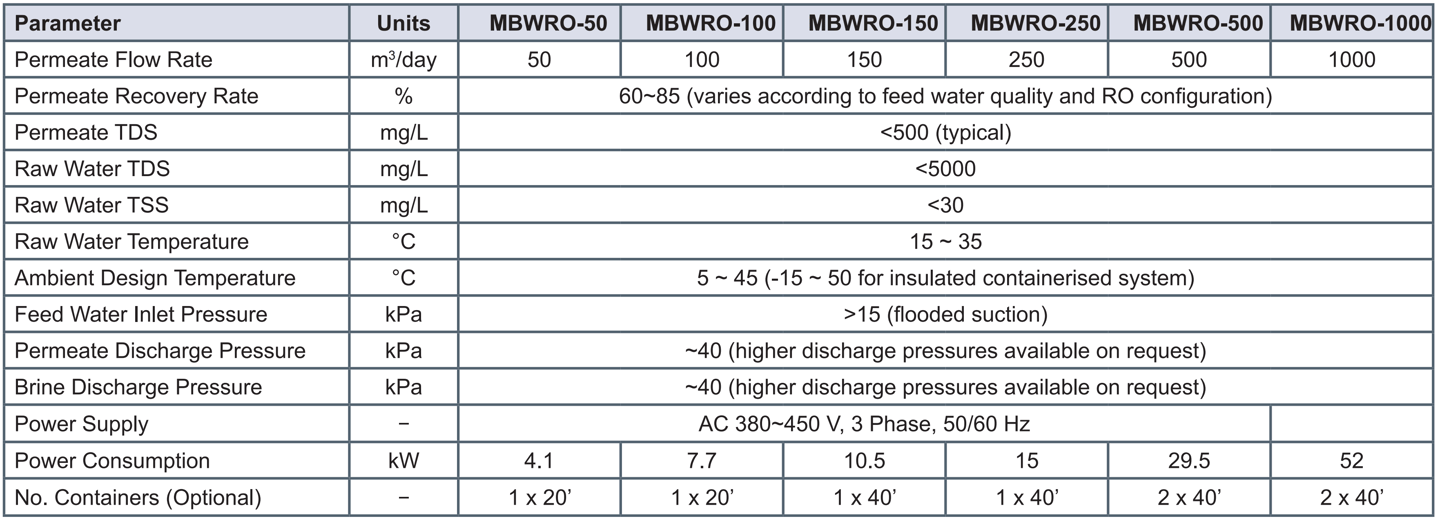

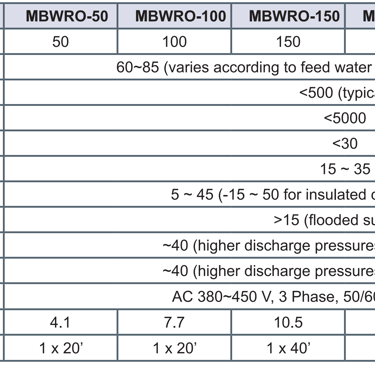

BRACKISH WATER REVERSE OSMOSIS MBWRO SERIES

Memtik Water’s Brackish Water Reverse Osmosis (MBWRO) desalination plants are designed to treat ground/surface or industrial water with <5,000 mg/L of dissolved solids (TDS) and <30 mg/L of suspended solids (TSS), to achieve potable water quality. The standard treatment process involves pre filtration (auto-backwashing multimedia filters and cartridge filters), anti-scalant dosing to prevent membrane scaling, RO desalination and a CIP system for membrane cleaning.

Additional pre-RO and post-RO treatment steps may be added as required to suit feed water conditions and/or treated water quality requirements. The MBWRO plants are available as skid mounted or containerised systems.

Memtik-A Trusted Partner in SWRO Product

We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.

BRACKISH WATER REVERSE OSMOSIS

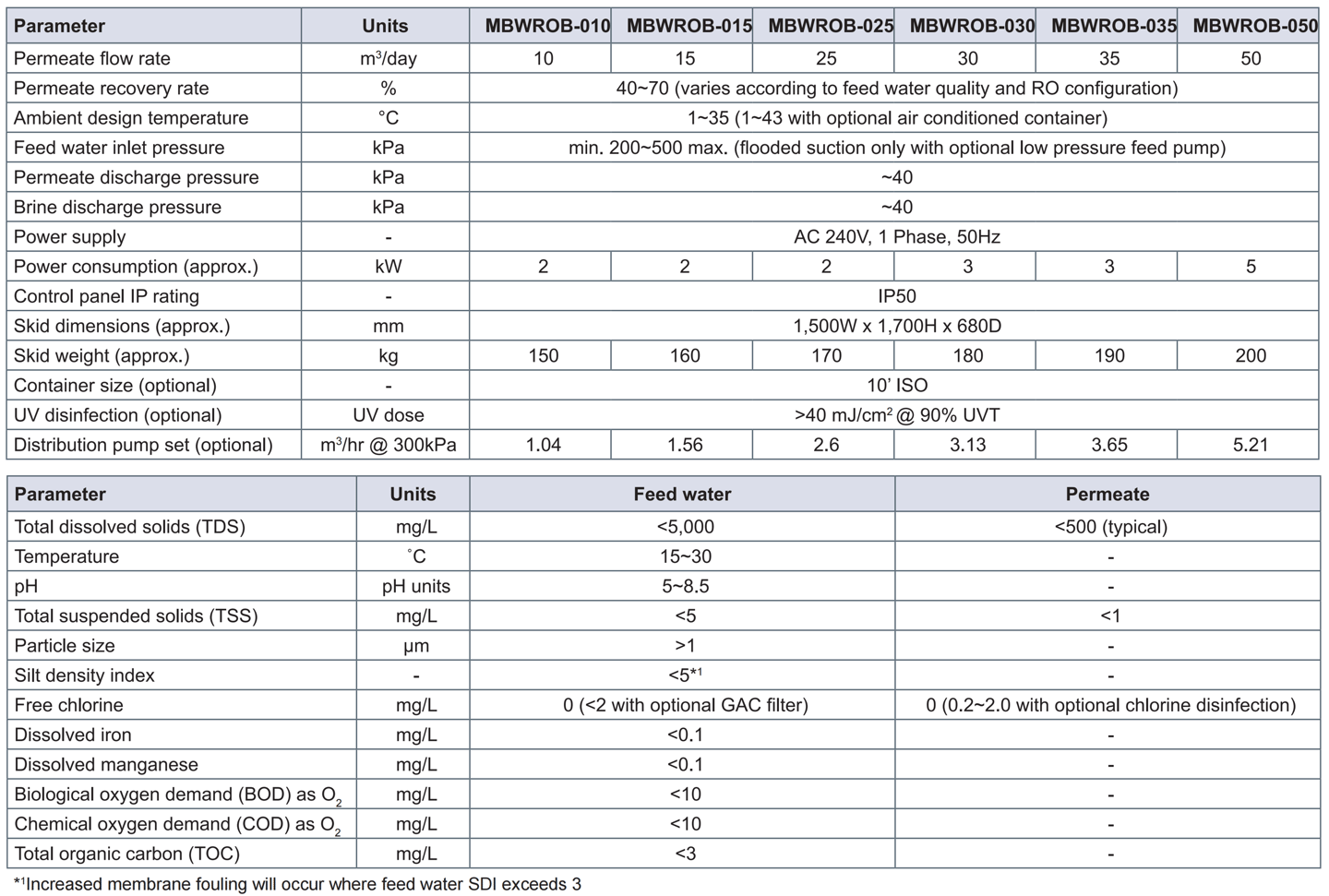

MEMTIK’s Brackish Water Reverse Osmosis - Basic (MBWROB) plants are pre-engineered products, designed to suit simple applications where a high level

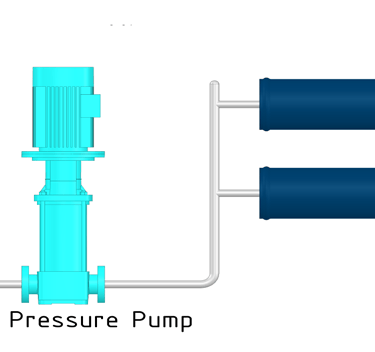

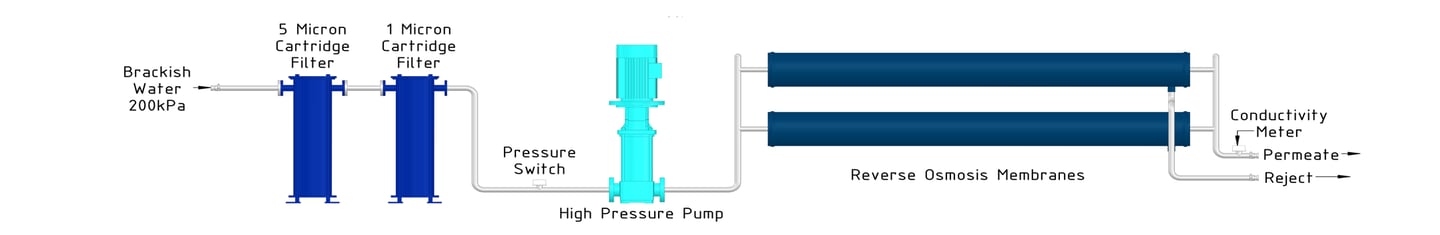

of electrical instrumentation and controls is not required, and the feed water quality falls within <5,000 mg/L of dissolved solids (TDS) and <30 mg/L of suspended solids (TSS), to achieve potable water quality . The standard treatment process involves pre-filtration (5 and 1 micron cartridge filters) and RO desalination. The MBWROB is designed to operate continuously until the permeate tank is filled, or feed water is unavailable.

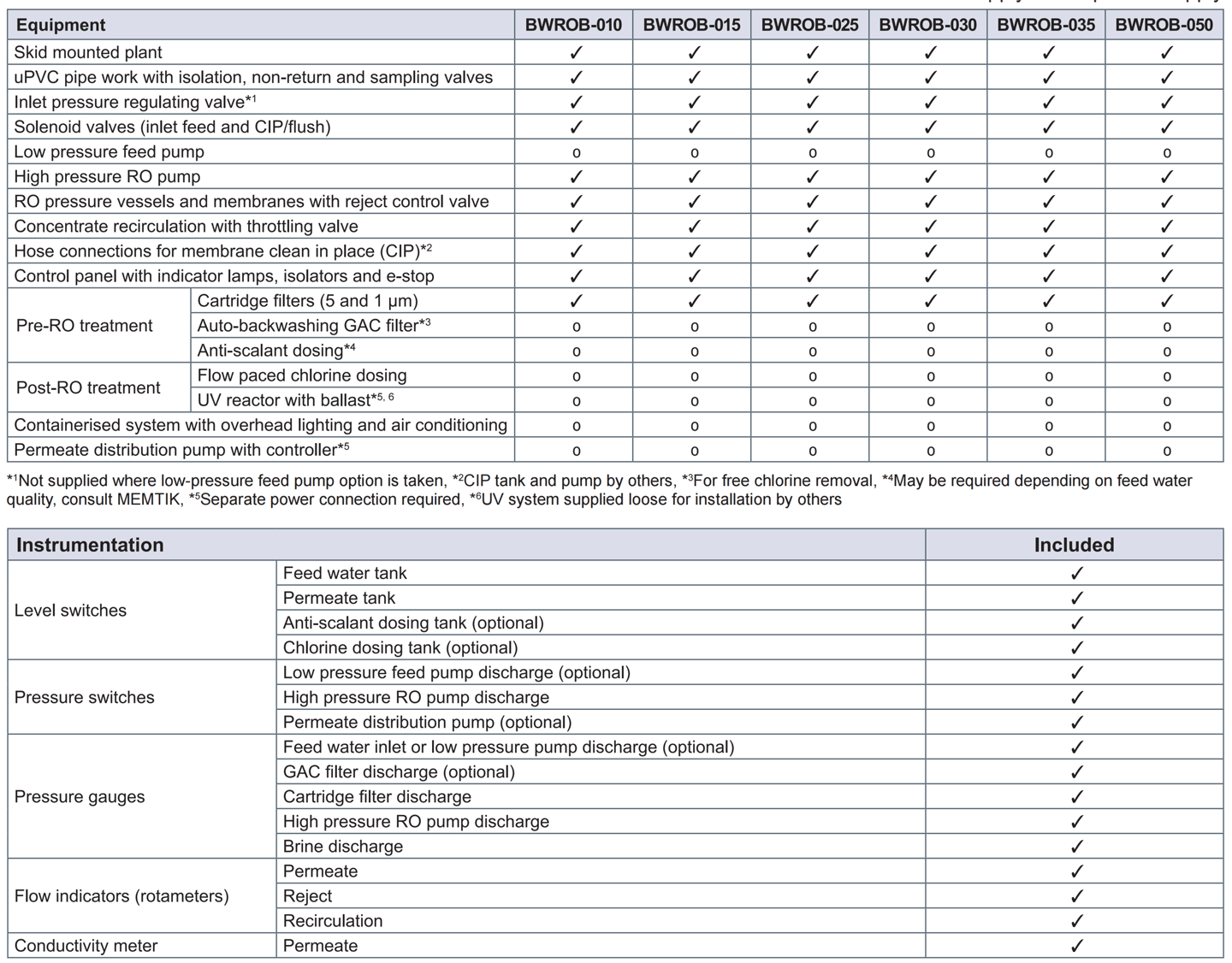

The MBWROB is available with a pre-determined number of standard options and is supplied with a generic documentation package.
